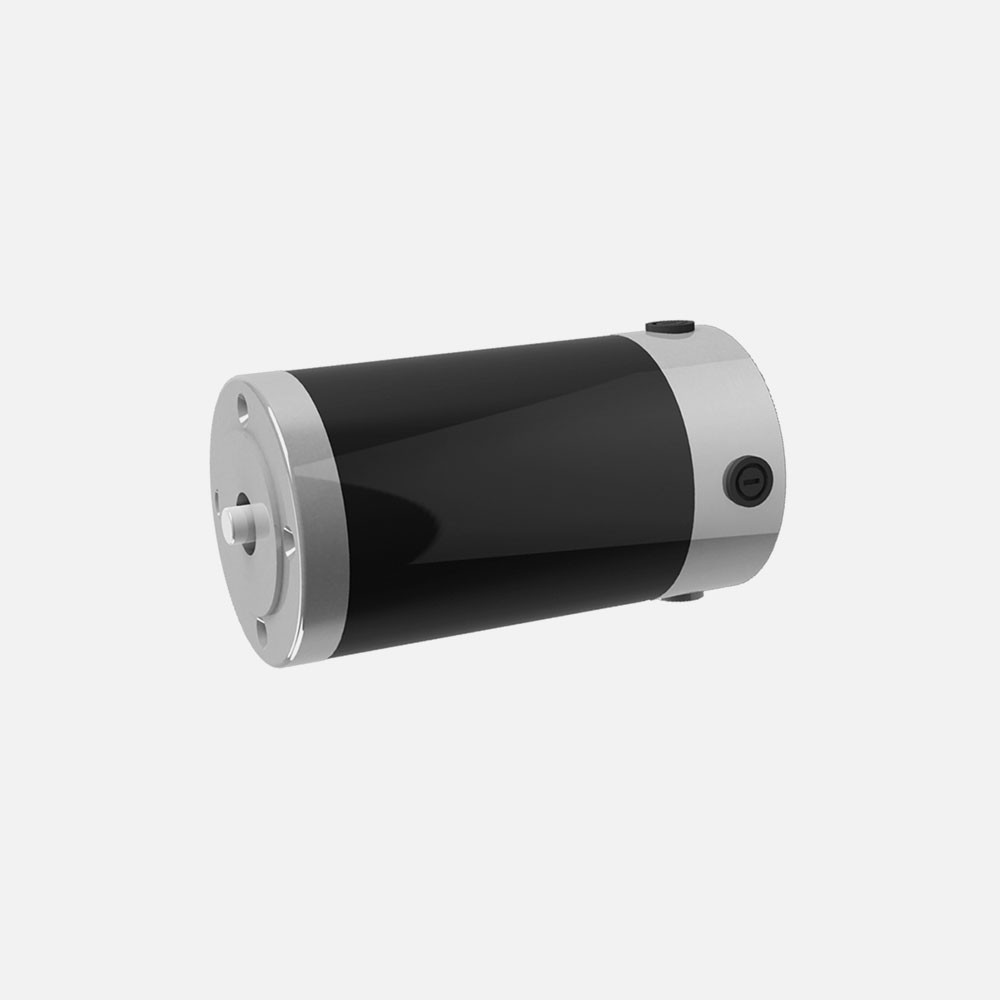

110ZYT Series
综合性能参数 |
电压范围: | 24V dc ( 220V also available ) |
输出功率范围: | 250 ~ 600 W |
转速范围: | up to 9,000 rpm |
操作温度: | -20℃ ~ +40℃ |
绝缘等级: | F ( consult us for class B ) |
轴承类型: | High quality ball bearings |
机壳种类: | Closed ( ventilated also available ) |
综合性能参数 |
电压范围: | 24V dc ( 220V also available ) |
输出功率范围: | 250 ~ 600 W |
转速范围: | up to 9,000 rpm |
操作温度: | -20℃ ~ +40℃ |
绝缘等级: | F ( consult us for class B ) |
轴承类型: | High quality ball bearings |
机壳种类: | Closed ( ventilated also available ) |
性能数据 |
型号 | 电压 | 额定功率 | 额定转速 | 额定扭矩 | 额定电流 | 空载电流 | 空载转速 | 长度 |
Units | V | W | rpm | mNm | A | A | rpm | mm |
110ZYT200-12V | 12 | 283 | 2700 | 1 | 34.6 | 4.9 | 3270 | 200 |
110ZYT200-24V | 24 | 514 | 3070 | 1.6 | 26 | 2.6 | 3350 | 200 |
110ZYT200-48v | 48 | 553 | 3300 | 1.6 | 14.3 | 2.5 | 3300 | 200 |
轮廓图 |
