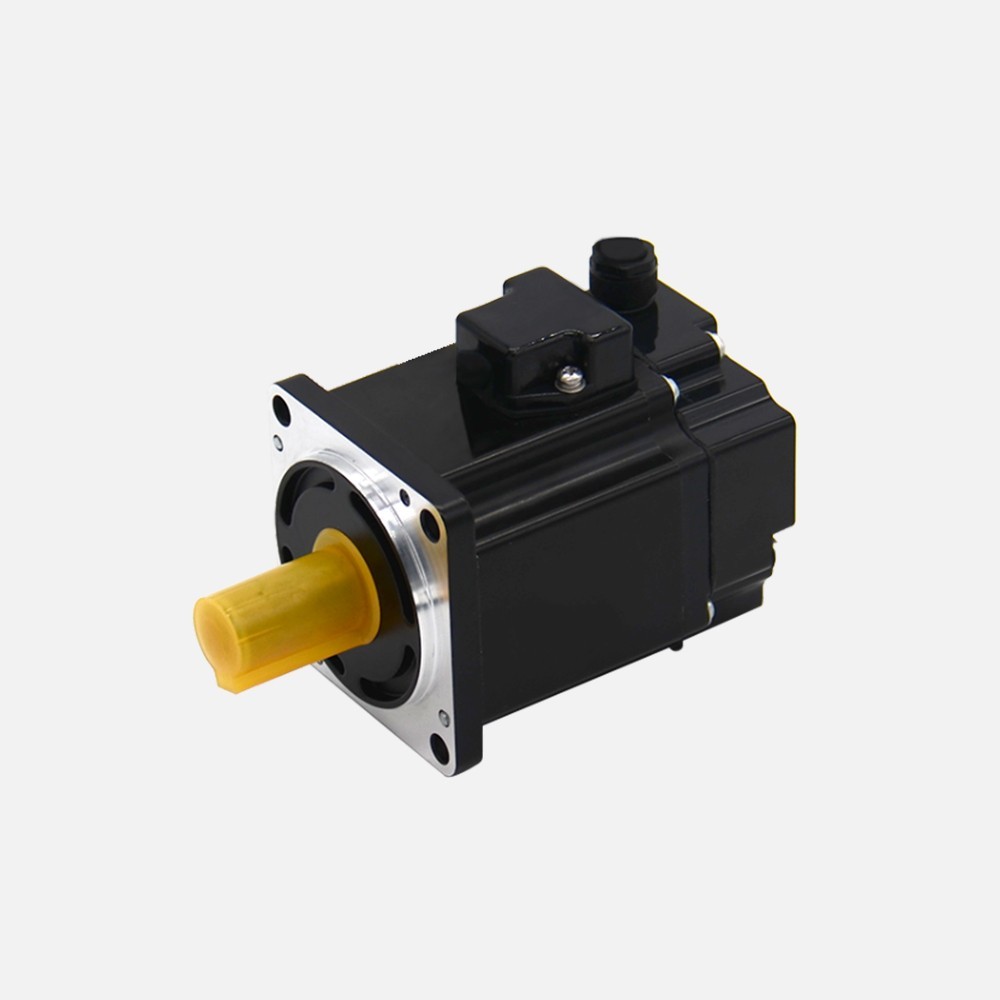

60SM Series
| 性能数据 |
| 型号 | 极对数 | 额定电压 | 额定功率 | 额定力矩 | 额定转速 | 最大力矩 | 最大转速 | 额定电流 | 最大电流 | 扭矩常数 |
| Units | / | VAC/VDC | W | N.m | rpm | N.m | rpm | A | A | N.m/A |
| 60S00730M3 | 4 | 220VAC | 200 | 0.637 | 3000 | 1.911 | 6000 | 1.4 | 4.2 | 0.50 |
| 60S01330M3 | 4 | 400 | 1.27 | 3000 | 3.81 | 6000 | 2.7 | 8.1 | 0.51 | |
| 60S00730M5 | 4 | 48VDC | 200 | 0.637 | 3000 | 1.911 | 4500 | 5.5 | 16.5 | 0.12 |
| 60S01330M5 | 4 | 400 | 1.27 | 3000 | 3.81 | 4500 | 11 | 33 | 0.12 |
| 型号 | 转子惯量 | 反电势常数 | 热绝缘等级 | 防护等级 | 编码器类型 | 运行环境 | 重量 | 抱闸额定电压 | 不带抱闸长度 | 带抱闸长度 |
| Units | Kg*cm² | V/Krpm | Class | / | / | / | Kg | VDC | mm | mm |
| 60S00730M3 | 0.15 | 30 | F | IP65 (出轴端除外） | 增量式或绝对 值编码器 | -20℃ to 40℃ humidity＜90% | 0.8 | 24 | 79.5 | 114.5 |
| 60S01330M3 | 0.21 | 31 | 1.2 | 24 | 101.5 | 136.5 | ||||
| 60S00730M5 | 0.15 | 7.4 | F | IP65 (出轴端除外） | 增量式或绝对 值编码器 | -20℃ to 40℃ humidity＜90% | 0.8 | 24 | 79.5 | 114.5 |
| 60S01330M5 | 0.21 | 7.4 | 1.2 | 24 | 101.5 | 136.5 |
| 轮廓图 |
